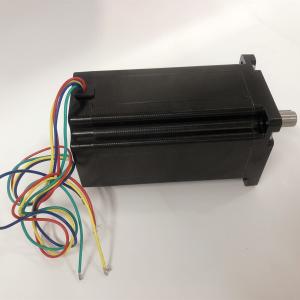

CNC machine used stepper motor nema23 0.9degree 1.5N.M 1000rpm
Company Information
Changzhou JianSanShi Mechatronics Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years.
Till now, Dewo has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake.
If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations.
Product Description
General specification:
| Step Angle | 0.9° |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃ Max∼+50℃ |
| Insulation Resistance | 100M ΩMin.,500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max (450g-load) |
| Max. Radial Force | 75N (20mm from the flange) |
| Max. Asial Force | 15N |
Electrical Specification:
| Model No. | Step Angle (°) | Voltage /Phase (V) | Current /Phase (A) | Resistance /Phase (Ω) | Inductance Phase (mH) | Holding Torque (kg.cm) | Detent Torque (g.cm.Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Lead Wires No. | Motor Weight (kg) |
| 57HM56-3004 | 0.9 | 2.7 | 3 | 0.9 | 3.5 | 10 | 400 | 300 | 56 | 4 | 0.7 |
| 57HM56-4204 | 0.9 | 1.7 | 4.2 | 0.4 | 1.5 | 10.5 | 400 | 300 | 56 | 4 | 0.7 |
| 57HM64-1004 | 0.9 | 7.8 | 1 | 7.8 | 29.2 | 12 | 500 | 380 | 64 | 4 | 0.85 |
| 57HM64-4204 | 0.9 | 1.8 | 4.2 | 0.43 | 1.6 | 13 | 500 | 380 | 64 | 4 | 0.85 |
| 57HM76-1006 | 0.9 | 8.6 | 1 | 8.6 | 23.2 | 13.5 | 680 | 440 | 76 | 6 | 1.05 |
| 57HM76-3004 | 0.9 | 3.6 | 3 | 1.2 | 4.5 | 15 | 680 | 440 | 76 | 4 | 1.05 |
| 57HM76-4204 | 0.9 | 2.1 | 4.2 | 0.51 | 2.4 | 18 | 680 | 440 | 76 | 4 | 1.05 |
Dimensions: Wiring Diagram:
(Unit=mm)
L1 and L2 canbe customized according to customers' requirements.
Our Services
Different specification of stepper motor with competitive price for your choice:
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
First-class service:
customization and OEM is available.
Warranty: 12 months
Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
Packaging & Shipping
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
