130DNMA2-0003CKAM Dorna Ac Servo Motors 3kw 3000rpm For Textile Machinery

Brand Name : JSS

Model Number : 130DNMA2-0003CKAM

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union, paypal

Supply Ability : 100pcs/day

Delivery Time : 21days

Packaging Details : Cartoon box

Name : ac servo motor

Servo Motor Model : 130DNMA2-0003CKAM

Rated power : 3KW

Rated speed : 2000RPM

Max speed : 2500RPM

Feedback device : 5000-Line

Flange : 130*130mm

Condition : 100% Original

weight : 25kg

Type : Servo Motor

application : engraving machine, cutting plotter, textile machine

Contact Now

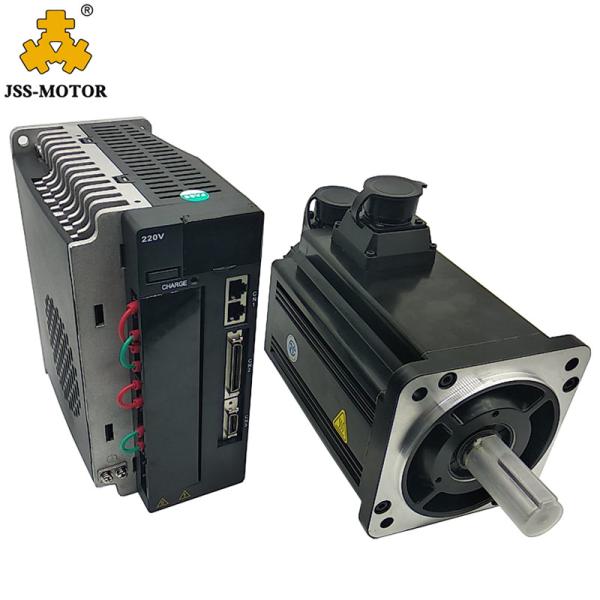

3kw dorna ac servo motor and driver Textile machinery 3000rpm encoder 5000ppr

Product Description

Main features

1. Faster

Shortened positioning time
Quick instruction tracking
Response frequency up to 1KHz bandwidth

2. More Reliable

Grade 2 Motch Filter
Regenerative functions
Built-in dynamic brakes(optional)

3. More Accurate

High resolution encoders up to 20bit (1,048,576 ppr)
Load inertia detection
Fully closed-loop function

A wide range of application:

Our motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.

B1 series	servo driver	motor frame size	servo motor	motor parameter
B1 series	servo driver	motor frame size	servo motor	speed	torque
power	model NO.	frame	model NO.	rpm	N.m
3KW	EPS-B1-0003AA-A000	130	130DNMA2-0003CKAM	2000	14.33
3KW	EPS-B1-0003AA-A000	180	180DNA-30BK1AMS	1500	19.1
