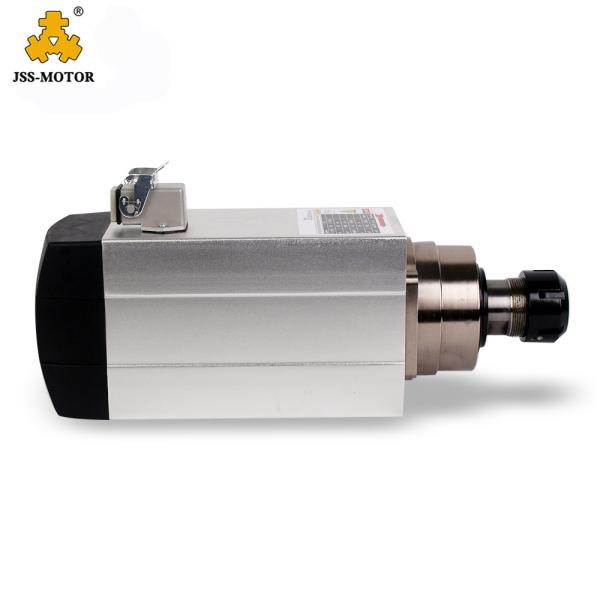

GDZ93x82 Air Cooled Spindle Motor 2.2kw 18000rpm

  • 1
  • 2

Brand Name : JSS

Model Number : GDZ93*82-2.2

Certification : CE,ROHS,ISO

Place of Origin : Jiangsu, China

MOQ : 1

Price : negotiate

Payment Terms : T/T,Paypal,credit card, Western Union

Supply Ability : 2000pcs per weeks

Delivery Time : 20 work days

Packaging Details : cartons

product name : spindle motor air cooled

Key words : spindle motor

ODM : support

Application : cutting plotter

Operating speed : 18000rpm

Voltage : 220V 380V

Frequency : 300HZ

Cooling type : air Cooling

Weight : 8kg

Diameter : 93*82

Lubrication : Grease

Bearing type : 2*7007C P4 + 2*7002C P4

current : 10A

collet : ER20

Contact Now

Cutting Plotter Spindle Motor Air Cooled Square Shape 2.2kw 18000rpm Spindle

Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..

Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.

We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.

1. Imported bearings; bearings with dust cover, more secure

2. Using grinding process, can improve motor concentricity and prolong life

3. Air-cooled motor, sculpture forceful, high precision, long life

Product Description

Product Features

speed:18000rpm

power :2.2Kw

Voltage :220V or 380V

size:93*82

The datasheet of our water cooling spindle motor

TYPE speed (rpm) power(kw) voltage (V) current (A) frequency (HZ) dimension collect product size(mm) Weight(kg)
L4 L5 L6 L1 L2 L3
square GDZ93*82-1.5 18000 1.5 220 380 6.6 3.8 300 45 30 20 ER20 137 44.5 37 6
square GDZ93*82-2.2 18000 2.2 220 380 8 4.6 300 45 30 37 ER25 173 48.5 37 8


Motor size :

GDZ93x82 Air Cooled Spindle Motor 2.2kw 18000rpm

GDZ93x82 Air Cooled Spindle Motor 2.2kw 18000rpmSuitful pairs:

GDZ93x82 Air Cooled Spindle Motor 2.2kw 18000rpm

GDZ93x82 Air Cooled Spindle Motor 2.2kw 18000rpm

GDZ93x82 Air Cooled Spindle Motor 2.2kw 18000rpm
