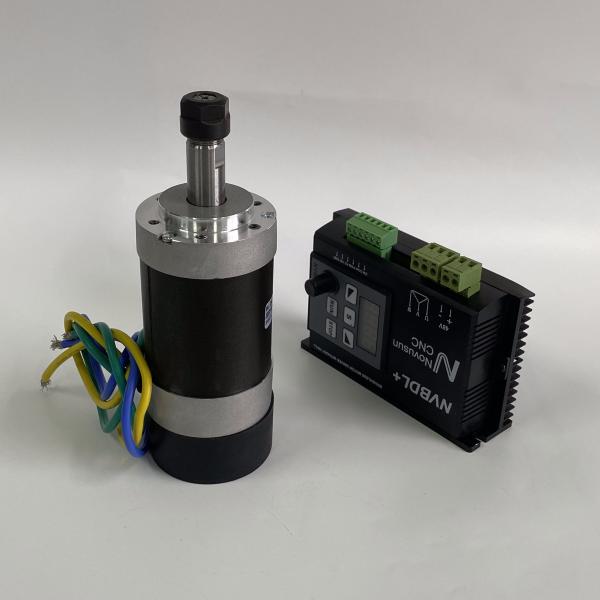

Mini Cnc Spindle Dc Motor Air Cooled 12000RPM 500W 48VDC ER11 Collect
Spinlde motor specifications:
Input voltage: DC48V
Speed: 12000RPM
Rated power 500W
Size: diameter 57mm
Cooling: air cooling with fan
Chuck: ER11
Features:
Brushless motor has low interference, compare to brushed motors, there will be no spark generated when motor is running, thus greatly reduce electric spark interference to remote radio equipment.
Brushless motor has less friction force during operation, which is a great advantage for the stability of equipment operation.Long service life and low maintenance costs, brushless motor is mainly abrasion on the bearing, and only need to clean dust when necessary.
- 57mm Round Shape Brushless DC Motor:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.025mm |
| Radial play | 0.06mm/50g |
| End play | 0.05mm/50g |
| Max radial force | 28N/20mm from the flange |
| Max axial force | 15N |
| Insulation class | Class B |
| IP class | IP40 |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩmin 500VDC |
Electrical Specification:
| Model | Rated Voltage(VDC) | Rated Current(A) | Rated Power(W) | Rated Torque(N.m) | Peak Torque(N.m) | Rated Speed(rpm) | Length(mm) |
| 57BLY90-4120 | 48 | 12 | 400 | 0.3 | 0.9 | 12000 | 120 |
| 57BLY110-4120 | 48 | 14 | 500 | 0.4 | 1.2 | 12000 | 140 |
Electrical Connection:
| Lead No. | Lead color | Lead gauge | Function | Description |
| 1 | Yellow | UL3266/16AWG | PHASE U | MOTOR PHASE U |
| 2 | Green | PHASE V | MOTOR PHASE V |
| 3 | Blue | PHASE W | MOTOR PHASE W |
Size: (mm)
Diagram:
Our main products include hybrid stepper motor, stepper driver, brushless dc motor, brushless dc driver, spindle motor, gearbox.
Our products are widely applied in engraving machine, mini cnc, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.
